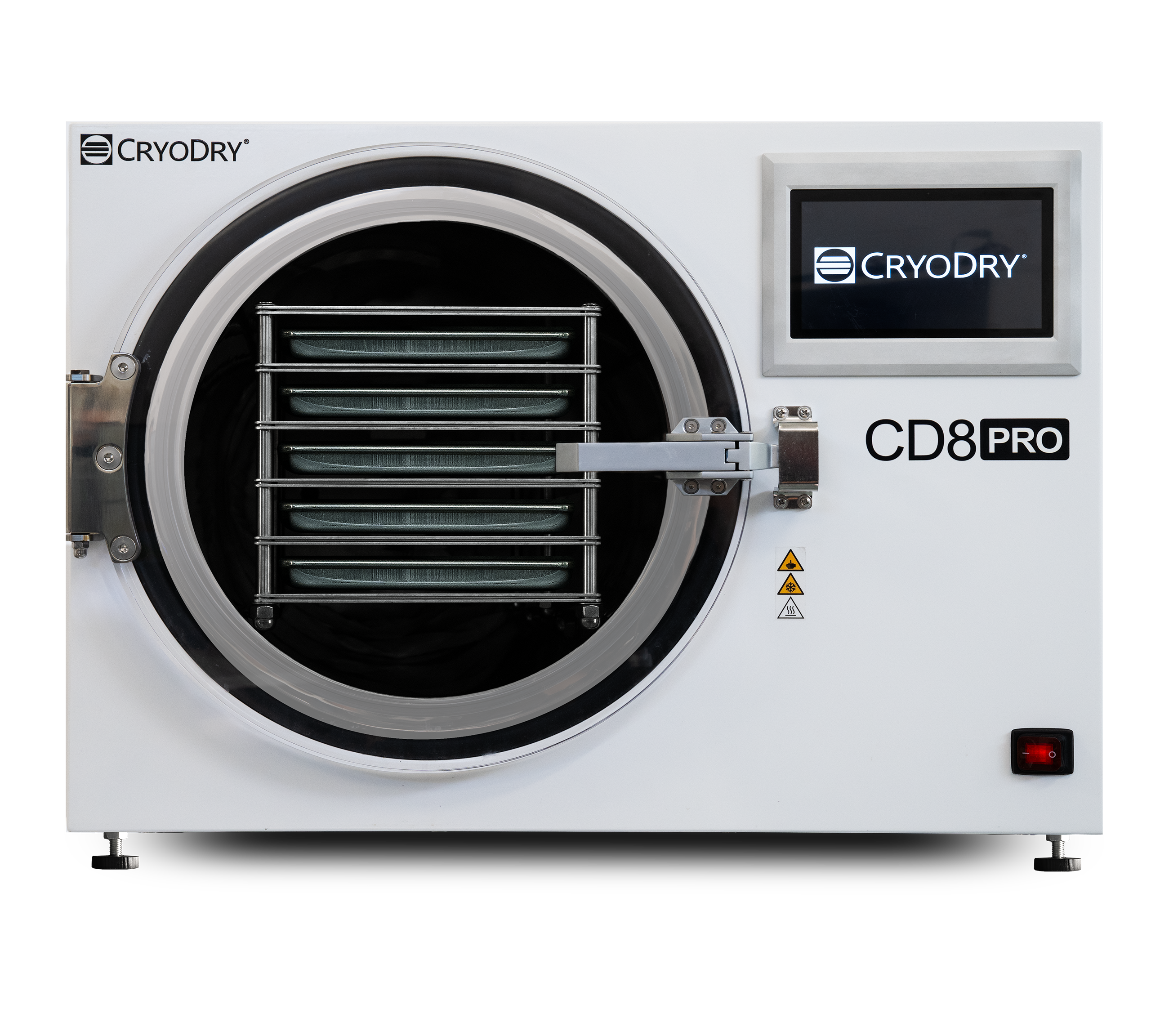

CD8 Pro Freeze Dryer
- Remote Control
- All-in-One Freezing & Drying
- Easy-to-Use
- Automatic, Program & Manual Modes
- 8 kg Ice Capacity, 8,100 cm2 Shelf Area
- Flexible Shelf Stack Configurations
The CryoDry® CD8 Pro is an intelligent, all-in-one freeze dryer that combines freezing and drying in a single process, eliminating manual handling, streamlining workflows and giving full control. With manual, programmed or fully automatic operation it caters for virtually any use case.
CryoDry® Console enables remote control of your CD8 Pro freeze dryer including limitless programming, live graphical progress tracking and even multi-machine management. Take control of your freeze dryer via Wi-Fi or Internet from any operating platform via web browser. The CryoDry support team is now literally only one click away and can assist with application questions, technical troubleshooting and your service needs.
With a large 8 kg ice condenser capacity and the ability to remove up to 4 kg of ice per 24 hours, the CD8 Pro supports high-throughput applications. It also features an impressive 8,100 cm2 shelf area for large loads. The standard CD8 Pro package includes 5 cooled and electrically heated shelves in CryoDry’s unique Sandwich Shelf Stack Design, ensuring uniform heat distribution and temperature control ranging from −40°C to +60°C.
The CD8 Pro also has leading energy-efficiency, global power compatibility and certifications for UL, CSA, CE, and RCM. With its advanced features, flexibility and robust performance, the CD8 Pro is an essential upgrade for any lab requiring reliable and efficient freeze-drying.

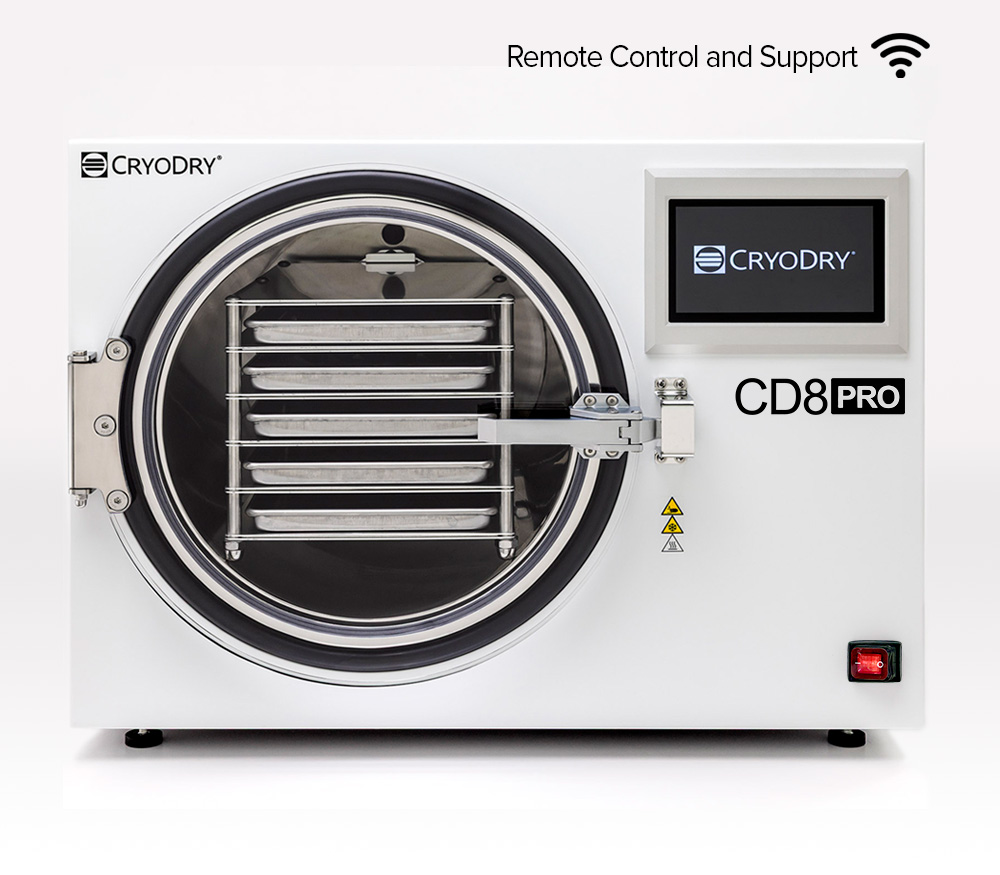

Remote Control – CryoDry® Console enables remote access for control of your CD8 Pro freeze dryer including limitless programming, live graphical progress tracking and even multi-machine management. Take control of your freeze dryer via Wi-Fi or Internet from any operating platform via web browser. The CryoDry support team is now literally only one click away and can assist with application questions, technical troubleshooting and your service needs.
All-in-one Process – CD8 Pro’s All-In-One Process simplifies the freeze-drying process by combining freezing and drying into a single step. Unlike traditional passive freeze-dryers, there is no need for a separate freezing step, eliminating the need for additional manual handling. CD8 Pro features programmable shelves with a temperature range of -40°C to +60°C, which provides precise control over the entire process from freezing to heat application for primary and secondary drying. This enables tailoring of the drying process to your product, resulting in efficient and effective drying.

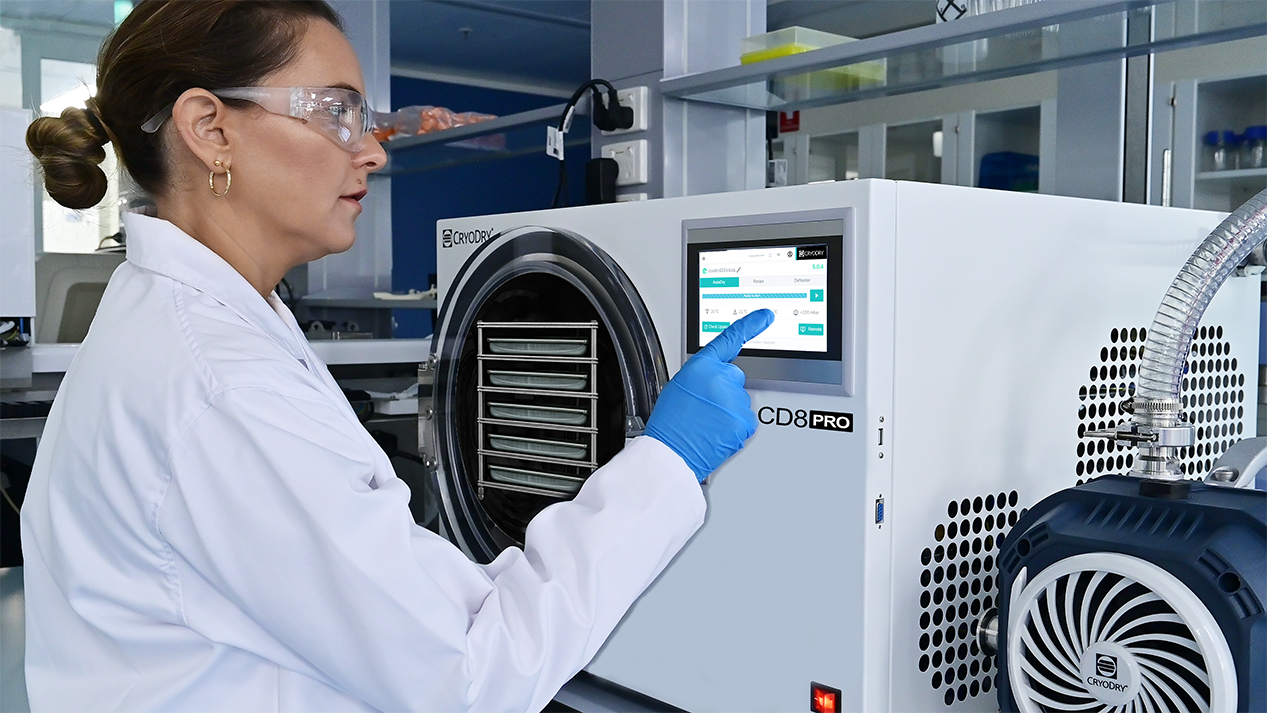

autodry – The new and innovative autodry mode is perfect for beginners or users who do not want to setup their own drying programs. Autodry uses an advanced algorithm to determine drying progress. It automatically adapts drying parameters and identifies process end.
Fast – CD8 Pro is designed to be fast and efficient. It features temperature-controlled shelves enabling fast freezing and even faster drying. This capability is not available in traditional passive freeze dryers that use flasks or unheated shelves. CD8 Pro’s programmable shelves have a temperature range of -40°C to +60°C, making the freeze-drying process customisable. Heated shelves for active drying energy input means that the CryoDry® freeze dryer can significantly reduce drying time, resulting in time savings of typically more than 60% over traditional passive freeze drying.
| Features | Benefits |
| Remote Control | Full remote control of your dryer including real-time updates via SMS and Email |
| Autodry® Mode | Automatically adjusts drying parameters and detects process completion |
| Limitless Programming | Allows advanced users to create, edit and track custom recipes. |
| Energy Efficiency | The combination of our inverter-based wide range compressor, a highly efficient global power supply, solid state relays and other highly efficiency components result in the CD8 Pro having market leading energy efficiency. Average consumption is below 700W per hour when used with HiScroll 6. |
| Vacuum Oven Mode | Enables energy-saving operation and faster heat-up times, expanding the range of applications beyond traditional freeze drying. |
| Global Certification | Ensures compliance and safety across international markets. |
| Multi-machine remote management | Manage multiple CD8 Pro from one single interface, allowing sharing and copying of recipes between machines |
| Global Power Supply | Operates on various voltages and frequencies for worldwide use |
| Power Recovery | Automatically resumes operation after transient power outages |
| Ozone friendly natural refrigerant | Minimal carbon footprint and ultra-low greenhouse warming potential (GWP). Guaranteed long term availability (unlike ozone depleting CFC and HCFC) |
| Refrigeration | ||
|---|---|---|
| Total Condenser Volume | 11 litres | |
| Ice Condenser Capacity | 8 kg | |
| Condenser Performance | 4 kg per 24 hours | |
| Ice Condenser Temperature | < -45 °C | |
| Refrigerant | R290 | |
| Typical Product Capacity | 9.6 kg at 80% moisture | |
| Defrost Function | Shelf heating | |
| Vacuum | ||
| Ultimate Vacuum | 1.5 x 10-1 mbar | |
| Shelves | ||
| Number of Shelves | 5 | |
| Shelf Stack Options | 9, 7, 3 and 1 shelves | |
| Inter-shelf Distance | 9 Shelves 16 mm | |
| 7 Shelves 22 mm | ||
| 5 Shelves 33 mm | ||
| 3 Shelves 59 mm | ||
| 1 Shelf 188 mm | ||
| Tray Size | 200 x 450 x 15 mm | |
| Minimum Shelf Temperature | -40 °C | |
| Maximum Shelf Temperature | +60 °C | |
| Power Requirements | ||
| Electrical | AC 120V, 14A 50/60Hz | |
| AC 220-240V 8A 50/60Hz (Not for UL-mark) | ||

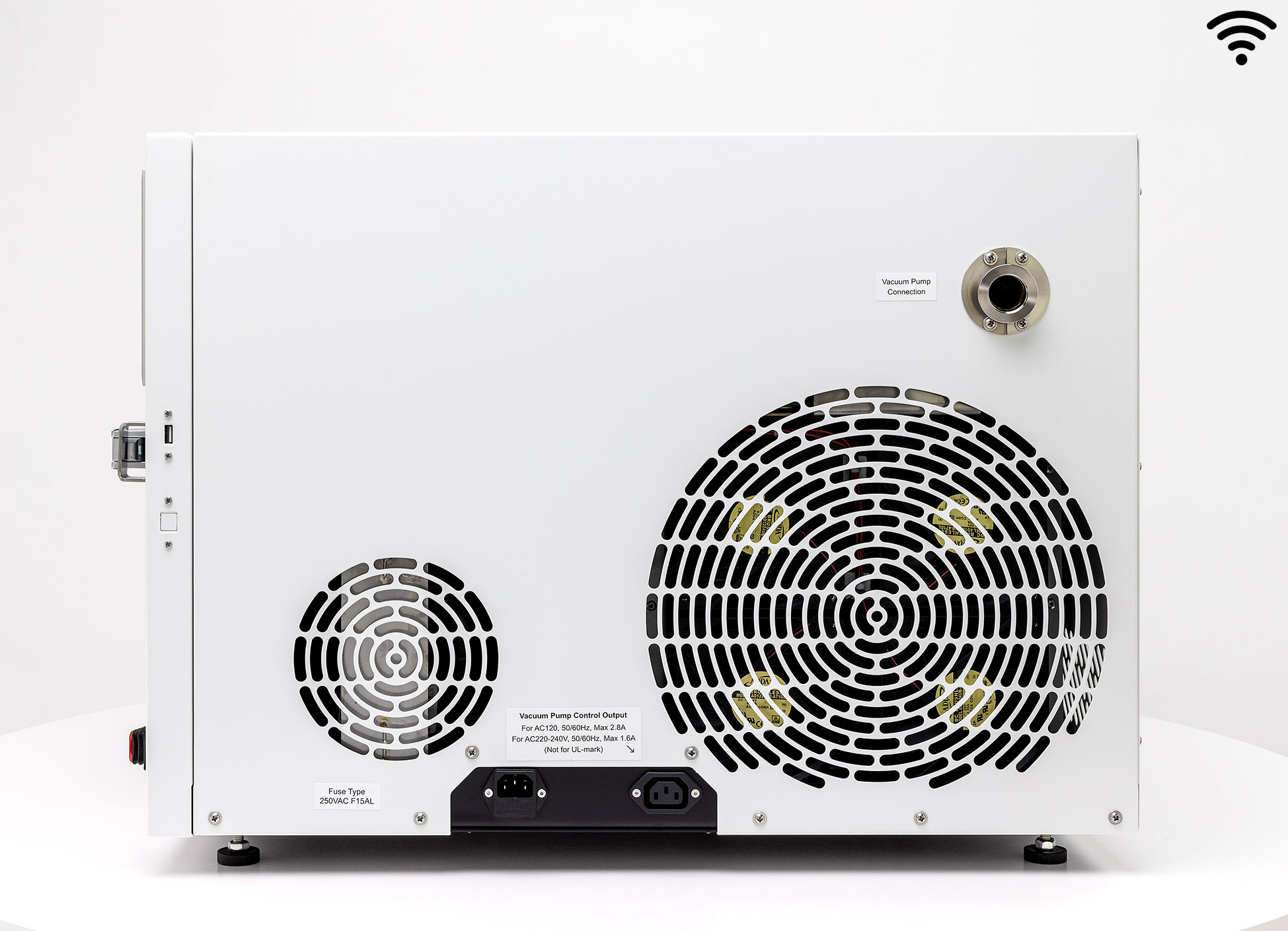

| Maximum Vacuum Pump Current: | AC120V, 50/60Hz; 2.8A | |
| AC220-240V, 50/60Hz; 1.6A | ||
| Interfaces | ||
| Interfaces | USB-A, Wi-Fi | |
| Size and Weights | ||

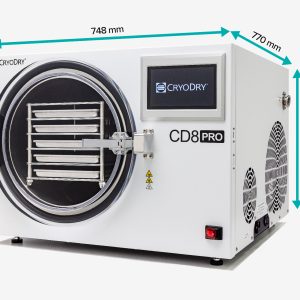

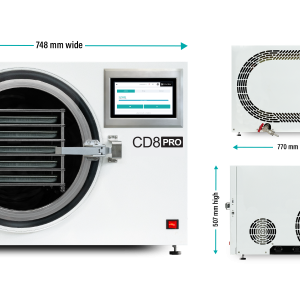

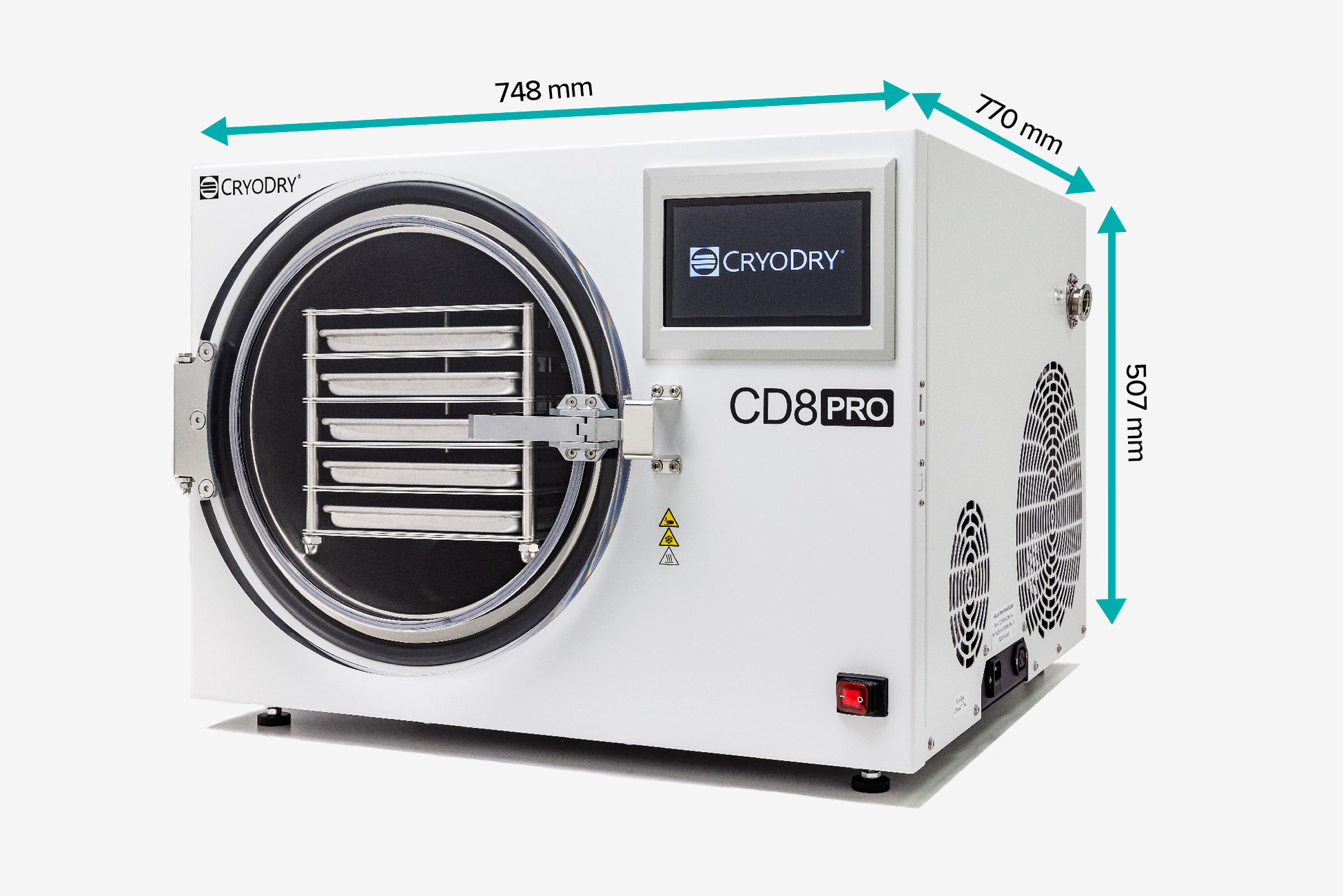

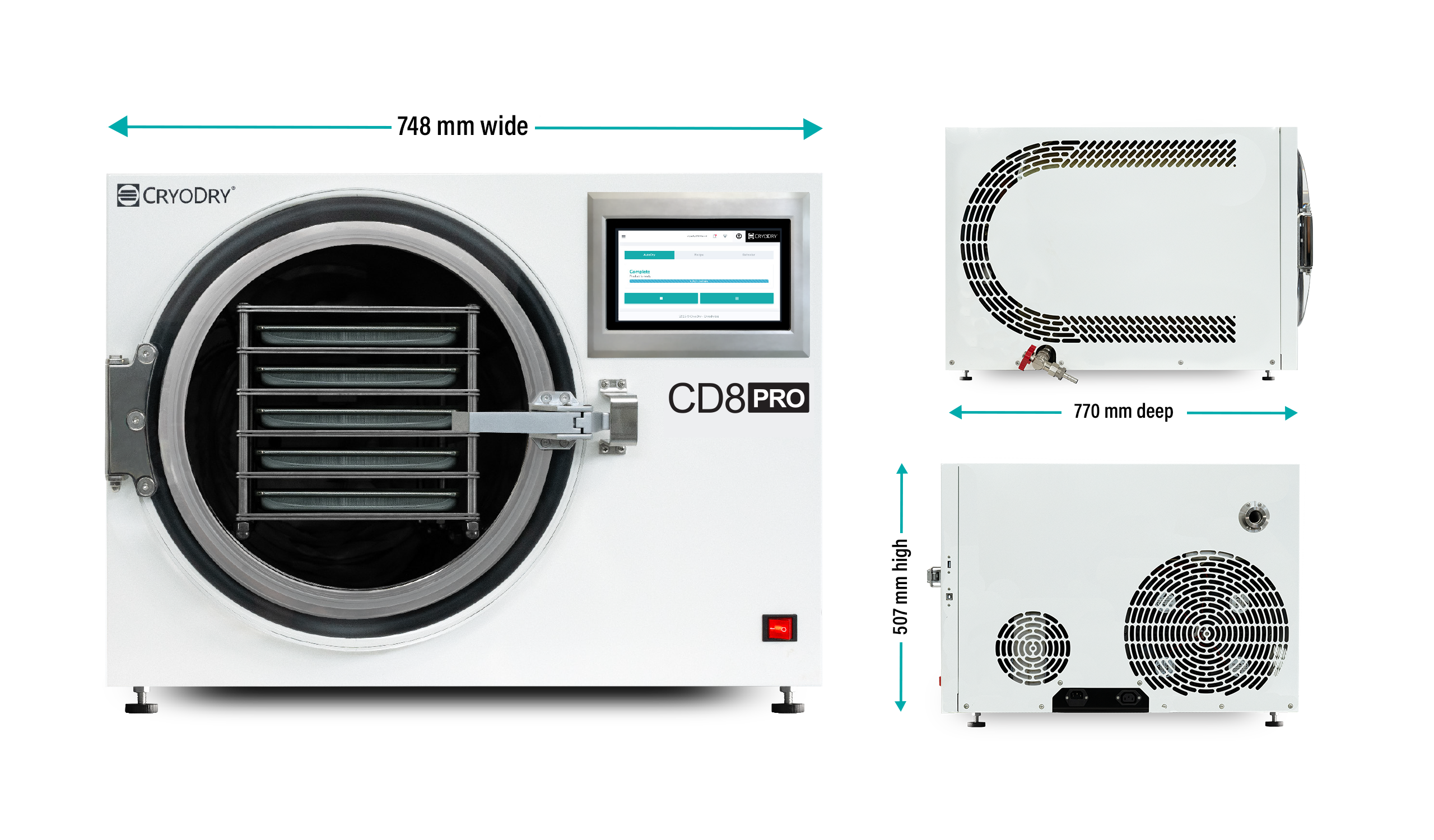

| External Dimensions (DxWxH) | 770 x 748 x 507 mm | |
| Weight | 87 kg | |
| Noise Level | 54 dB(A) | |
