HiScroll 6 Vacuum Pump

$6,920.00

HiScroll 6 Vacuum Pump offers a pumping speed of 6.1m3/hr and ultimate vacuum of 1.5×10-2 mbar

Electrical: 100 – 127 / 200 – 240 V AC (±10 %), 50/60 Hz

SPECIFICATIONS SHEET

Pfeiffer Vacuum hiscroll Vacuum pumps

HiScroll 6 Vacuum Pump offers a pumping speed of 6.1m3/hr and ultimate vacuum of 1.5×10-2 mbar Completely dry & oil-free scroll vacuum pump. Low noise level, minimal vibrations and compact design, ideal also for use in laboratories Low operating costs thanks to the highest quality, short maintenance times and long maintenance intervals

HiScroll 6 Technical Specifications:
Pumping Speed: 6.13 m³/hr
Ultimate Vacuum 1.5×10-2 mbar
Noise Level (dB(A)) <48
Operating Temperature 5 – 40 °C
Electrical: 100 – 127 / 200 – 240 V AC (±10 %), 50/60 Hz

Pfeiffer vacuum pumps are 15% more efficient than comparable products, offering significant operation cost savings whilst also offering the highest performance on the market. Our pumps are characterized by their pumping speed when evacuating against atmosphere.

SPECIFICATIONS SHEET

Whisper Quiet

HiScroll pumps are extremely quiet at <48 dB(A) and <42 dB(A) in stand-by mode. Their low-vibration operation and compact design make them ideal for use in quiet working environments.

High Process Safety

For safe use, the hermetically sealed HiScroll features a check valve.

High Water Vapour Tolerance

The two stage gas ballast valve ensures high water vapour compatability which is key for freeze drying.

Quality

The proven quality of Pfeiffer Vacuum products assures a long service life, market leading service interval and lowest cost of ownership.

Back to Products

Specifications HiScroll 6 HiScroll 12
Pumping Speed 6.1 m³/h 12.1 m³/h
Ultimate Vacuum 0.015 mbar | 0.006 mbar
Power 100 – 127 / 200 – 240 V AC (±10 %),
50/60 Hz
Dimensions D x W x H 380 x 220 x 279 mm 419 x 265 x 322 mm
Noise Level dB(A) <48 <47
Inlet Flange DN 25 ISO-KF
Weight (kg) 19 24
Cooling System 5 – 40 °C
Certification CE / UL

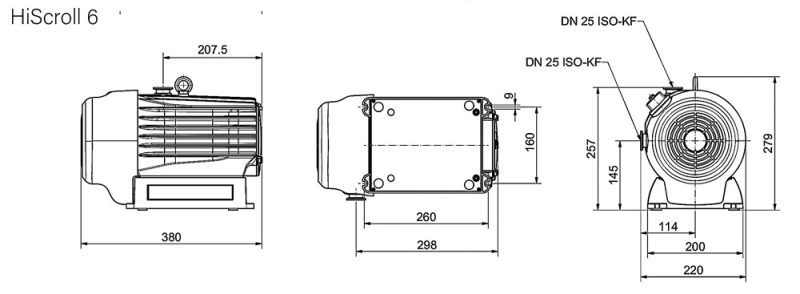

Pfeiffer HiScroll 6 Vacuum pump for CD8 Freeze Dryer - dimensions
